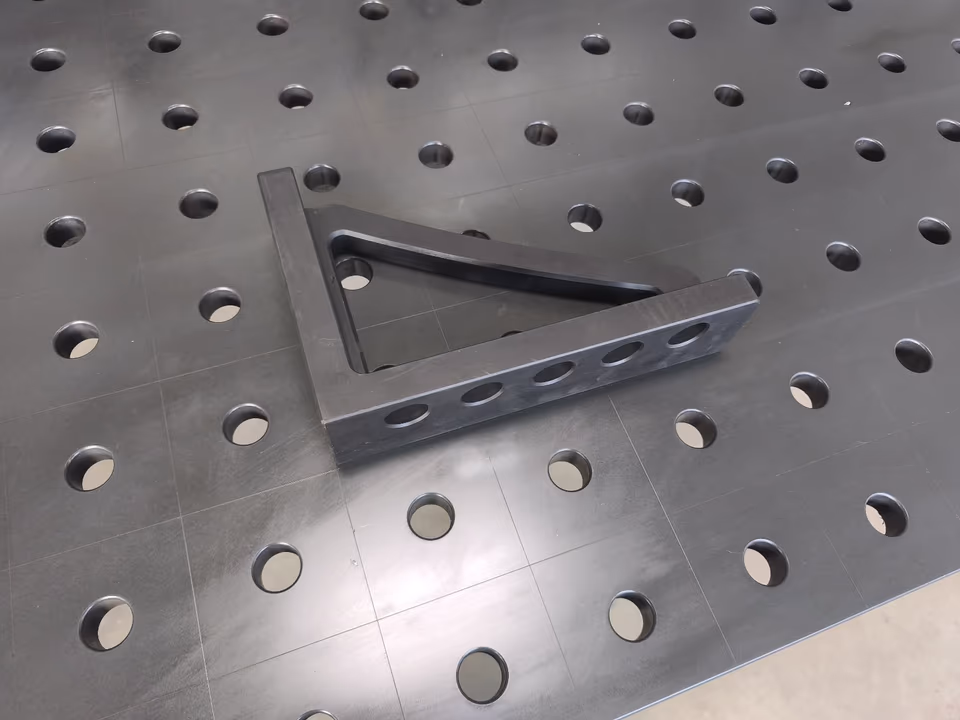

Stop and Clamping Square System 28 300x200x75

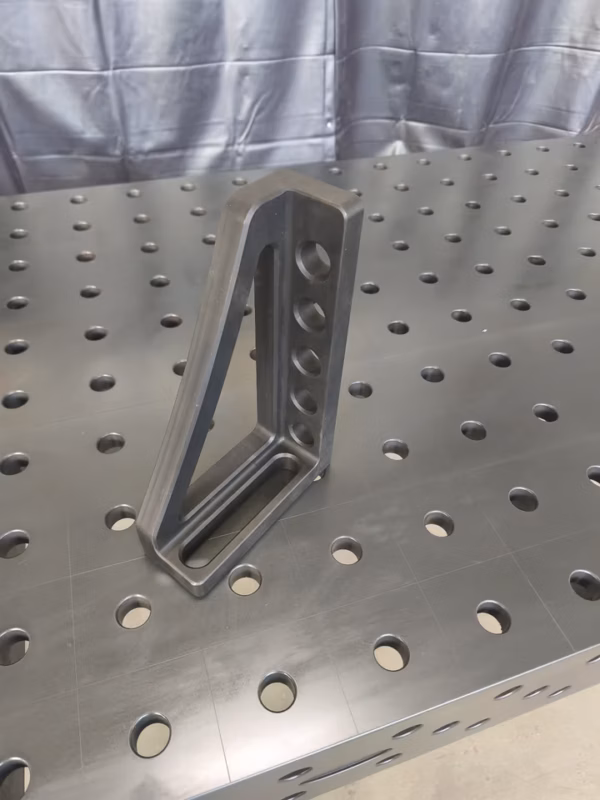

Stop and Clamping Square System 28 300x200x75 - Image 2

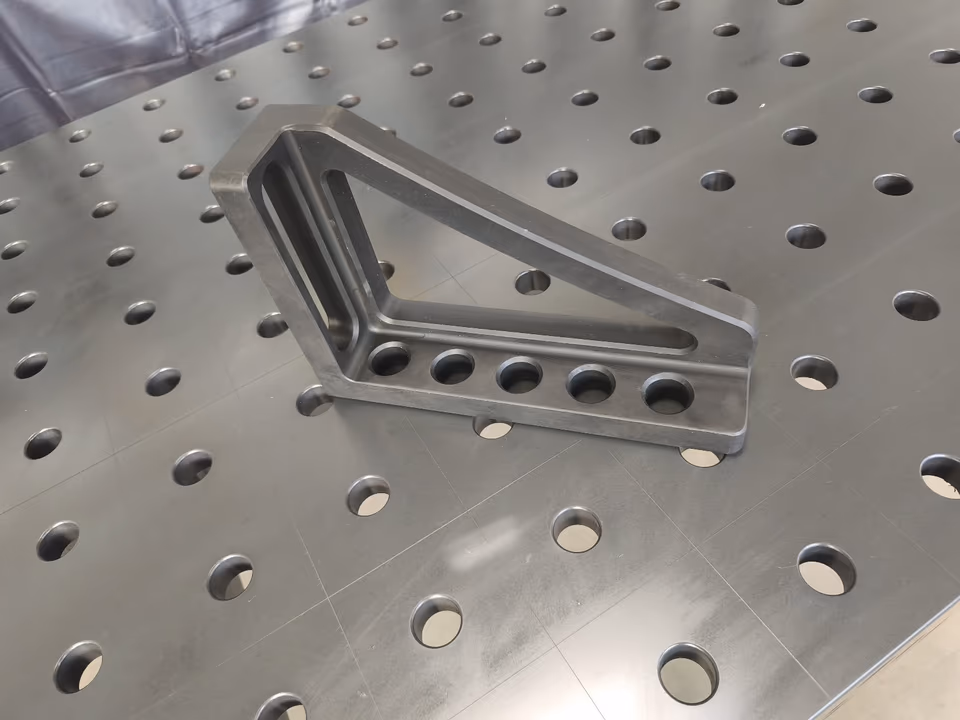

Stop and Clamping Square System 28 300x200x75 - Image 3

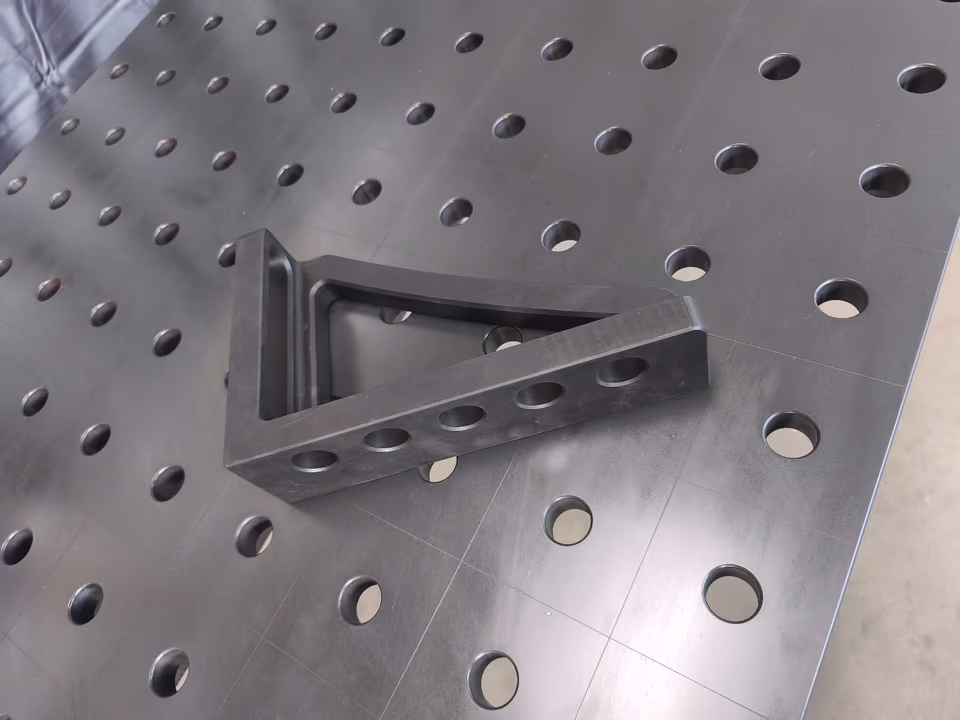

Stop and Clamping Square System 28 300x200x75 - Image 4

Stop and Clamping Square System 28 300x200x75

€100,00

SKU: URchangeSystem-2-1 Category:
Open inquiry list

The System 28 mm stop and clamping square can be fixed and variably secured thanks to the combination of drill holes and slotted holes. The angle can be used in a wide variety of ways, e.g. as a table extension. The angle is made of high-quality GGG40 material.
Length: 200 mm
Width: 75 mm
Height: 300 mm
Material thickness: 27 mm
Weight: 6.52 kg

Technical data

  • Withstands high loads with low dead weight
  • Can be released and locked with a single movement
  • High repeat accuracy < 0.01mm
  • Locking bolt secures hand lever against automatic release
  • Withstands 50,000 replacement cycles
  • Interface DIN EN ISO 9409-1-50-4-M6
